Cali Raised Prinsu Light Bar Kit For Tacoma

This hassle free light bar kit has been designed to perfectly fit the Prinsu 40" cutout, and comes with everything needed. Ignite the night with the quality backed Cali Raised Light Bar Kit.

• Easy Installation

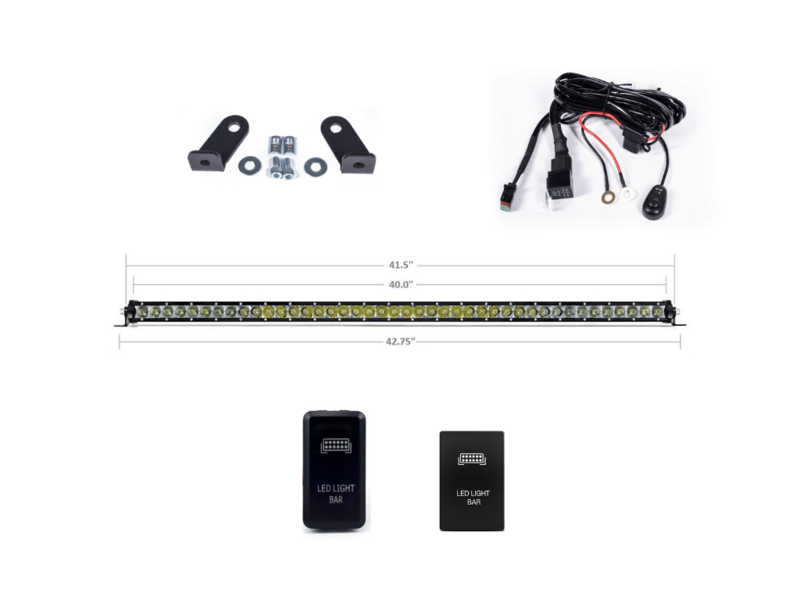

• Full Kit: 40" Light Bar, Low Profile Mounting Brackets & Hardware, Wiring Harness, OEM Style Switch Button
• 20,000 Lumens, 200 Watts, 40 LED's
• Gore Pressure Equalizing Vent
• Instant On/Off - No Warm Up
• AMBER Color Light Bar is a CLEAR Lens

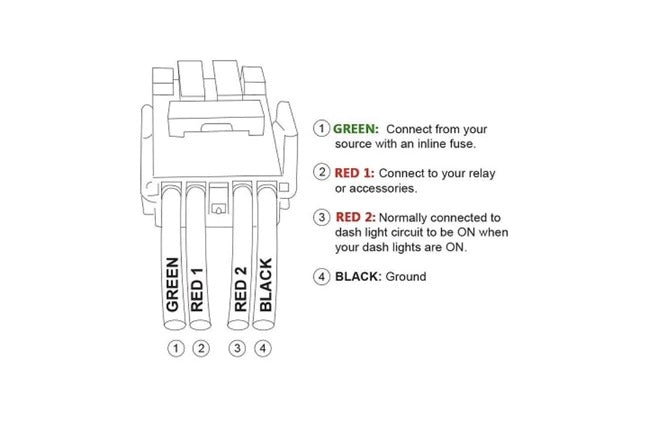

Wiring Instructions for Cali Raised Light Bar kit and OEM Style Switch

1. Black Wire (Light Bar) → Black Wire (Switch)

   • This connects the ground of both components.

2. White Wire (Light Bar) → Green Wire (Switch)


3. Blue Wire (Light Bar) → Red 1 (Switch)

   • This connects the power output of the switch to the light bar.

4. Red 2 (Switch) [Optional] → ACC Fuse Position

   • This allows the switch to illuminate when the vehicle is turned on.
